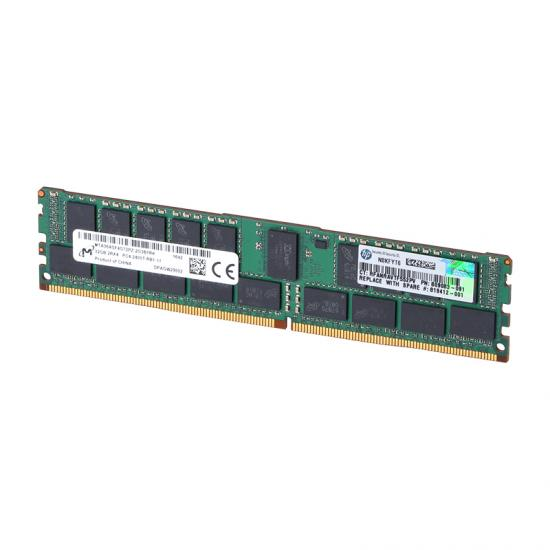

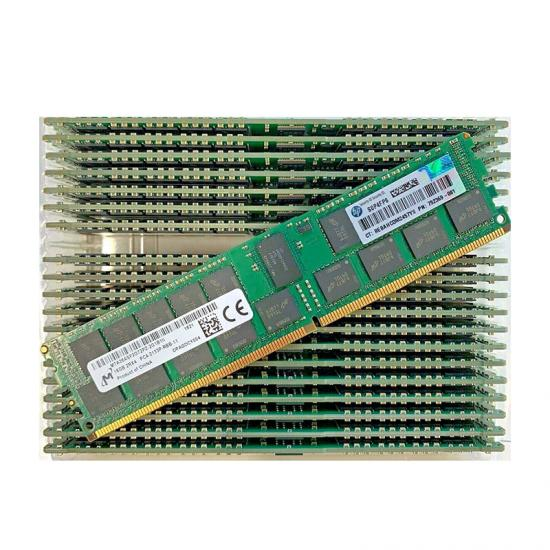

P06033-B21 HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
Specifications
| 32GB Capacity |
| 3200MHz |
| DDR4 ECC REG |
| Dual Rank |
Product Details
HPE P06033-B21 32GB (1x32GB) Dual Rank x4 3200MHz 288-Pin DDR4-3200 CL22 ECC DIMM SDRAM Registered Smart Memory Kit for ProLiant Generation10 Plus Servers (Brand New in Factory Sealed Box with 3 Years Warranty)
HPE Server Memory is designed for SMB and enterprise customers with a significant need for performance and capacity along with a desire to manage total cost of ownership. HPE Smart Memory enables total server memory optimization, runs at top throughput speed and is among the most power-efficient memory available. In addition to performance and efficiency, HPE Smart Memory also delivers on reliability. Only the highest-quality DRAM modules are selected from top suppliers. Now more than ever, DRAM quality is critical, as data center trends such as server virtualization, cloud computing, and the use of large database applications have increased the need for higher-capacity memory with greater up-time. HPE Smart Memory undergoes rigorous qualification and testing processes that unlock memory performance features available only with HPE servers.
The HPE P06033-B21 is 32GB (1X32GB) DDR4 Memory module that operates at speeds up to 3200MHz and has a CL22 latency. It is a high performance Registered Memory. It conforms to the industry standard DIMM layout of 288 pins and is compatible with computers that take DDR4 DIMM memory. This Dual Rank memory comes with a 3 Years Warranty.
Specification
Brand: HPE
MPN: P06033-B21
Option Part Number: P06033-B21
Spare Part Number: P21674-001
Assembly Number: P11444-091
General
Product Type: RAM Memory
Capacity: 32 GB
Memory Type: DDR4 SDRAM - DIMM 288-pin
Upgrade Type: System Specific
Memory
Type: DRAM Memory Module
Technology: DDR4 SDRAM
Form Factor: DIMM 288-pin
Speed: 3200 MHz (PC4-25600)
Latency Timings: CL22 (22-22-22)
Data Integrity Check: ECC
Features: Dual Rank, Registered
Chips Organization: 2048 x 4
Voltage: 1.2 V
Product Dimensions & Weight
Height: 0.75 (1.91 cm)
Width: 3.50 inch (8.89 cm)
Depth: 7.80 inch (19.05 cm)
Weight: 0.10 lbs (0.045 kg)
Compatibility Information
Designed for
HPE ProLiant DL Series: DL110 Gen10 Plus Front Cabled Telco, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice
HPE Synergy 480 Gen10 Plus Base Compute Module
Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
SKU | Description |
815100-X21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
815100-H21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
815100-K21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
835955-X21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
835955-H21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
835955-K21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
P00918-X21 | HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00918-H21 | HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00918-K21 | HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00920-X21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00920-H21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00920-K21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00922-X21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00922-H21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00922-K21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00924-X21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00924-H21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00924-K21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00930-X21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00930-H21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P00930-K21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
P06029-X21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06029-H21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06029-K21 | HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06031-X21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06031-H21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06031-K21 | HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06033-X21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06033-H21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06033-K21 | HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06035-X21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06035-H21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06035-K21 | HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07525-X21 | HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07525-H21 | HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
